Small Jibs

AERO-JIB

4′ 5″ – 8′ 5″ Reach

Extension Kit Reach

13’

3 Rolling Cases

2 Weight Carts

$350/day (4 Day Week)

Small Base Available ($200/ Day)

GF- MULTIJIB

2 Rolling Cases

Weight Boxes Separate

$900/Day (4 Day Weeks)

Base Available

$200 Daily

Sectional Cranes

FOXY PRO

(8.5 ft – 33.5 ft) complete with 4 riding versions to 24 feet and 6 remote versions. Includes 32 feet of crane track, wheels, narrow base, Mitchell dolly adapter, custom carts and 16′ trailer.

Daily Price: $1000 ($4000/4 Day Week)

GIRAFFE

(5.5 ft – 31 ft) complete with 7 compatible configurations. Includes 84 feet of crane track, wheels and custom trailer.

Daily Price: $1000 ($4000/4 Day Week)

GF-16

(11′ – 55′) complete with 10 riding versions (1 rider to 40′ – 2 riders to 27′) and 15 remote versions, 80 feet of crane track & wheels, and custom trailer.

Daily Price: $1200 ($4800/4 Day Week)

Telescopic Cranes

Scorpio 10’

Max Height: 14’3” (Overslung)
Telescopic Range: 7'7"
Speed: 6'/sec
Post Range: 1’2”
Base Spec: 3’10”  L x 2’1”
Retracted Arm: 3’5” (Nose to Post)
Full Retracted Length:  7’10” (Nose to Bucket)
Fully Loaded Weight: 1,130 Ibs
Weight w/o Leads: 470 Ibs
Arm Weight: 215 Ibs

Daily with 2 Axis Remote Head: ($1750)

Daily with 3 Axis Stab Head: ($2000)

Scorpio 17’

Max Height: 17'5"
Telescopic Range: 13'3"
Speed: 4'9"/ Sec
Post Range: 1'2"
Base Spec (Smallest Configuration):2' 6" W (Track Wheel Width)  3' 10" Long
Retracted Arm: 3' 11" (Nose to Post)
Full Retracted Length: 9' 6" (Nose to Bucket)
Fully Loaded Weight:
Weight w/o Leads: 617 Ibs
Arm Weight: 267 Ibs

Moviebird 17’

Max Height: 16' 5"
Telescopic range:16' 5"
Speed: 3' 9"/ Sec
Post Range:  1’ 9”
Base Specs:  (Smallest Configuration) : 3’ 4” W x 4’6” Long
Retracted Arm: 4’ 7” (Nose to Post)
Full Retracted Length: 11’ 1” (Nose to Bucket)
Fully Loaded Weight: 1675 Ibs
Arm Weight: 400 Ibs

Moviebird 24’

5′ 5″ – 23′ 10″ Reach
Max Height: 23’6” (Overslung)
Telescopic Range: 18’4”
Speed: 3’9”/ Sec
Post Range: 1’ 3”
Base Spec: 4’7” L x 4’7” W
Retracted Arm: 4’9” (Nose to Post)
Fully Retracted Length : 11’ 3” (Nose to Bucket)
Fully Loaded Weight: 2389 Ibs
Weight w/o Leads:  1181 Ibs
Arm Weight: 595 Ibs

Daily with 2 Axis Remote Head: ($2250)

Daily with 3 Axis Stab Head: ($2850)

Moviebird 30’

7′ – 30′ Reach

Max Height: 35’4” (Overslung)

Telescopic Range: 23'

Speed: 5'/sec

Post Range: 1’ 6”

Base Spec: 5’5” L x 5' W (Heavy Duty Wheels)

5’5” L x 4’3” W (Studio Wheels)

5’5” L x 3’3” (Track Wheels and Track)

Retracted Arm: 7' (Nose to Post)

Fully Retracted Length: 14’9" (Nose to Bucket)

Fully Loaded Weight: 3,300 Ibs

Weight w/o Leads: 2419 Ibs

Arm Weight: 440 Ibs

Daily With 2 Axis Remote Head: ($2450)

Daily With 3 Axis Stab Head: ($3450)

(Please Contact for More Info)

Moviebird 45’

7′ 6″ – 45′ Reach

Max Height: 36' (Overslung)

Telescopic Range: 36'5"

Speed: 6'6"/sec

Post Range: 1’ 8”

Base Spec: 5’3” L x 4'11"

Retracted Arm: 8' (Nose to Post)

Fully Retracted Length: 15’10" (Nose to Bucket)

Fully Loaded Weight: 4,106 Ibs

Weight w/o Leads: 2006 Ibs

Arm Weight: 1345 Ibs (w/ Yoke)

Mobile Base Weight: 13,720 Ibs

Mobile Base Length: 12’ 5”

Mobile Base Width : 6’

Mobile base Height from Ground to top of Arm: 8’2”

Arc Compensation Available

Daily with 2 Axis Remote Head: ($3200)

Daily with 3 Axis Stab Head: ($3800)

Mob Base Addt’l Cost: ($750)

Moviebird 50’

50’ Reach Max Height: 46'9" (Overslung) Telescopic Range: 38'4" Speed: 9'5"/sec Post Range: 2’ 6” Base Spec: 5’5” L x 5' W Retracted Arm: 9'5" (Nose to Post) Fully Retracted Length: 18'1"(Nose to Bucket) Fully Loaded Weight: 6,060 Ibs Weight w/o Leads: 2710 Ibs Arm Weight: 2050 Ibs

Standard Mobile Base Length : 12’ 5”

Standard Mobile Base Width: 6’

Standard Mobile Base Height: 8’

Beach Base Length : 11’ 3”

Beach Base Width: 6’

Beach Base Height: 7’ 1”

Mob Beach Base Weight: 12320

Arc Compensation Available

Daily With 2 Axis Remote Head: ($4000)

Daily with 3 Axis Stab Head: ($4850)

Moviebird 62’

62′ Reach

Max Height:63'4" (Overslung)

Telescopic Range: 48'9"

Speed: 6'56"/sec

Retracted Arm: 11'4" (Nose to Post)

Fully Retracted Length: 23' (Nose to Bucket)

Fully Loaded Weight: 9470 Ibs

Weight w/o Leads: 6463 Ibs

Mob Base Weight Combined: 15,960 Ibs

Mobile Base Length: 11’ 5”

Mobile Base Width: 6’

Mobile Base Height: 8’ 8”

Daily with 2 Axis Remote Head: ($4500)
Daily with 3 Axis Stab Head: ($5000)
Mob Base Addt’l Cost: ($750)


Remote Heads

Non Stabilized




Mo-Sys L40

2 axis remote head with back-pan compensation

  • Extremely strong drive unit

  • Back-pan option

  • Fast set-up

  • Intuitive control

  • Data for post production ready for full VFX workflow

Talon

Joystick control for Pan, Tilt and Zoom; knob control for Focus

  • Record and move up to 2000 marked positions

  • Record and playback up to 34 minutes and up to 2000 takes

  • Share recorded data with laptop; both streaming and upload/download

  • Programmable maximum speeds for each motor

  • Programmable smoothing for each motor

  • Precise homing via operator command

  • Up to 2500′ between controller and head

  • Programmable motion limits

  • Servo tuning from remote console

  • Fujinon and Canon serial lens control

  • Camera synchronization

  • Extremely rigid with precise smooth motion

Mo-Sys Lambda 2-Axis and 3-Axis

  • Two Axis Lambda Head

  • One control (Hand Wheels)

  • Preston 3-motor Focus

  • 17″ Monitor (1)

  • 9″ Monitor (1)

  • AC/DC Converter

  • Batteries (4)

  • Hand Wheels Cart.






Mini Scorpio (Non-Stabilized)

2 and 3 axis remote head for video and film cameras

  • 3 control systems: JDR (Pan Bar), Joystick, Handwheels

  • Weight in 2 axis 18Kg, in 3 axis 25Kg.

  • Max. load: 45Kg. in 2 axis, 20Kg. in 3 axis

  • All axis Pan Tilt and roll in 3 axis 360 degrees continuous

  • Power from battery or power supply 24V to 35V

  • 2 video signals

  • 1 Triax signal

  • 10 auxiliary channels 2A

  • 1 connection for Scorpio Focus or others lens control systems

  • 2 out 12V/12,5A for normal or high speed cameras

  • 1 out 26,7V/12,5A for normal or high speed cameras

  • Max. speed in all axis 2,5sec. for 360 degrees.

  • Pan Bar Available



Remote Heads

Stabilized




Mini Scorpio (Stabilized)

Speed: 360o/2 seconds
Rotation: PAN 360o, TILT 360o, ROLL +/- 45o / 360o with NODAL ROLL accessory
Max. camera weight: 20 kg / 45 lb
Power requirements: 30 V DC
Standby current: 800 mA
Maximum usable lens focal: 200 mm
SET-UP time: The same as a standard Scorpio Head Water resistant

The Mini Scorpio Stabilized Head V can be controlled by two different ways:
• By cable up to 500 m (1500 ft)
• By radio with 2.4GHz or 900MHz Scorpio Radio

4 Axis Stabilized Scorpio Head

Choice of Joystick, pan bar, or hand wheels

  • Scorpio Focus

  • Witness Camera

  • 8″ Monitor (1)

  • Batteries (6).



Stabilized Scorpio V

Speed: 320º/3 seconds
Rotation: PAN 360º TILT 270º
ROLL +/- 30ª
Head Weight: 33kg / 72 lbs
Max camera weight: 45kg / 100lbs
Power requeriments: 30V DC
Stand By Current: 800 mA
Maximum Current: 10A
Maximum usable lens focal: 300 mm
Set-Up Time: The same as a standard Scorpio Head
Water resistant

Oculus 4 Axis Gimbal Stabilized Head

System Type: 4 axis gyro stabilized
Head Weight: 69 lbs
Max Payload: 100 lbs
Pan Limit: 360° Continuous
Tilt Limit: 360° Continuous
Roll Limit: 360° Continuous
Pan Speed: 240° per sec
Tilt Speed: 240° per sec
Roll Speed: 240° per sec
Operating Temp: -20° F to 120° F
Power Requirements: 48V DC
Min. Dims: 29.5” T x 24” W x 8” D
Controls: Handwheels (Included), Mimic Mode Now Available
Opt: Joystick, Wireless control, Pan-bar,



Mobile Bases And Accessories




Dragon Base (For Moviebird 60’)

Designed by Cranium for the 60’ Moviebird arm, the Dragon Base is an incredibly efficient way to drive to multiple areas around an exterior location and achieve amazing shots. The Dragon Base™ eliminates the need for extra manpower and is much easier and considerably safer to re-position in a variety of terrains. The entire crane and base come in a custom-designed heavy-duty trailer. Once the position has been found, it takes minutes to level the base with its hydraulic levelers, and post up (up to 10’ at the fulcrum) to desired height to achieve amazing shots.

Frog Base (For Moviebird 50’)

The new Frog Base is specifically designed for the SuperTechno 50, making it an incredibly efficient way to drive to multiple areas around an exterior location. The Frog Base eliminates the need for extra manpower and is much easier and considerably safer to re-position in a variety of terrains. The entire crane & base come in a custom heavy-duty trailer specifically designed to quickly swap conventional base (for tracking shots) & frog base without the need for an additional cost of a forklift. Once the position has been found, it takes minutes to level the base with its hydraulic levelers, and post up to desired height with its custom hydraulic post. The weights always ride on the base, eliminating the need for weight carts and additional gear to unload & move. With it’s Dana 70 front & rear four-wheel drive axles, the frog base is the efficiency solution that the 50’ Supertechno has been lacking. The Frog Base’s four cylinder Ford motor is dual fuel so it runs on regular gas or Propane for stage use.



Kreeper Base (For Moviebird 45’)

Introducing the long awaited Kreeper Base. Designed by Cranium for the 45’ Moviebird arm, the all new Kreeper Base is the newest addition to the Cranium mobile base family. The base is capable of all sorts of exciting shots whether you’re in downtown or out in the Mojave! The Kreeper Base™ helps to alleviate the need for extra manpower. The entire crane and base come in a custom-designed heavy-duty trailer. Once the position has been found, it takes minutes to level the base with its hydraulic levelers, and post up (up to 10’ at the fulcrum) to desired height to achieve amazing shots.

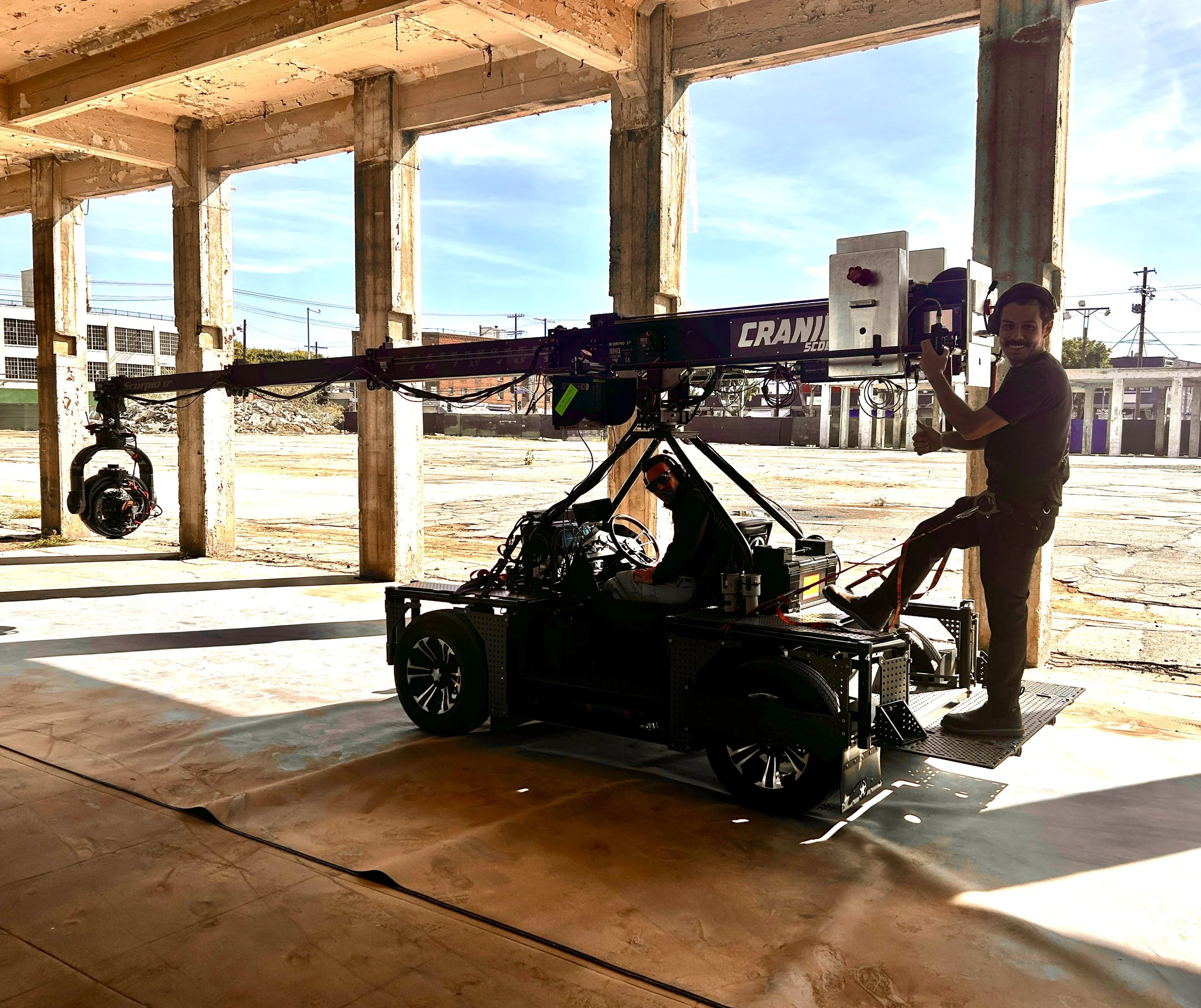

The Nazcar

Introducing the all new “Nazcar”. A revolutionary new electric camera car designed and built in house by the Cranium team. This car is designed to be fast, quiet, and agile, all the things necessary when achieving the perfect shot. The car is able to support a number of different cranes as well as a multi person crew. Please reach out for any and all questions.

Tanknocrane

It is finally here! The all new “Tanknocrane”. Built in house by the Cranium team, this revolutionary base comes equipped with tank treads to help traverse sandy locations. Gone are the days of leap frogging plywood down the beach, in are the days of saving time and money. Coupled with our new 50’ Moviebird arm, there isn’t a shot you can’t get. Please reach out for any and all questions.

Pan Bars

Available as an alternative to the standard wheels, we have pan bar options for our Stabilized Scorpios, Mo-Sys products as well as our Oculus Head! Please contact for pricing and further information

Roll Axis

The roll axis slides onto the Mo-Sys Lambda tilt arm to provide a 3rd axis on set within seconds. It provides continuous 360 degree rotation with the crisp and precise responsiveness that is trademark Mo-Sys.

  • Swappable in minutes

  • Unrivaled ease of adjustment and positioning

  • 360 degree roll, even with heavy payload

  • Fast 120 deg/sec roll rate

  • Precision gearing suitable for motion control

The roll axis has been designed to work with full professional film camera packages and allows continuous 360 degree rotation with large cameras (e.g. an Arriflex 435 with 300′ magazine).

With fast 120 degree/sec roll rate and precision gearing, it fits perfectly with the Lambda head to provide the user with a responsive remote head or motion control package.

Once the camera is mounted inside the roll axis, the user can adjust the axis position to balance the load and shift the camera nodal point without the need for special tools.



Scorpio Wireless Mimic Hand Control

The new Scorpio Hand Controls makes it much easier to operate the head wirelessly eliminating the need for bulky hand wheels. With the new hand controls you also gain accessibility to the all new Mimic mode. Call for more info!

Scorpio Head Joysticks

When hand wheels just won’t cut it, the scorpio joystick comes in handy. With a simple design and user interface, any DP will be able to get the required shot with great ease. For any questions, please feel free to reach out!

Oculus Mimic Mode

Combining some of the latest tech with ergonomic design, the mimic mode for the Oculus stabilized head is the perfect tool for helping to achieve the shot that hand wheels are not able to.
